Fluid Powered Chemical Dispensing Systems
Installation

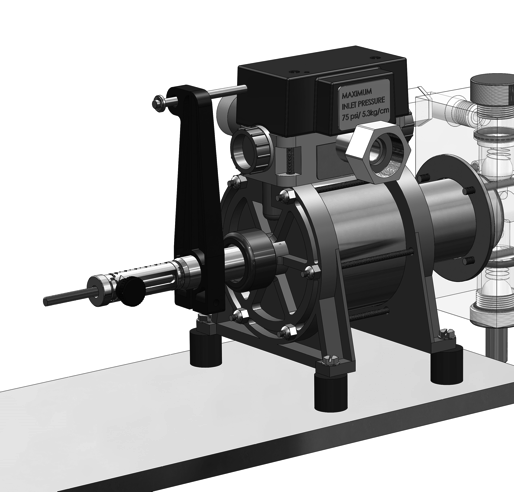

- Mount the proportioner on a bracket or shelf using the (4)
rubber feet provided. See attached pages for horizontal
or vertical mounting instructions.

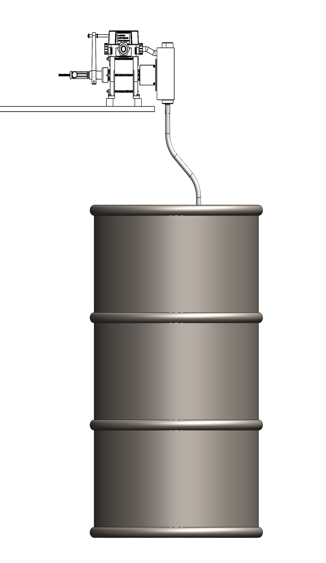

NOTE: MOUNT THE UNIT SO THE BOTTOM OF THE BRACKET IS 42" FROM THE FLOOR. THIS WILL ALLOW A DRUM OF PRODUCT TO BE PLACED UNDER THE PROPORTIONER. -
Install a 30 micron water filter in the inlet water line of the
proportioner. Failure to filter the proportioner water supply
will void warranty. If the inlet water pressure can exceed
75 PSI, a regulator should be installed in the inlet water
line.
NOTE: THE PROPORTIONER IS DESIGNED TO BE USED WITH 3/4" GARDEN HOSE CONNECTIONS FOR BOTH THE WATER INLET AND OUTLET. THE UNIT CAN BE CONNECTED WITH RIGID PIPE IF DESIRED. ALL NECESSARY HOSES AND PIPING MUST BE SUPPLIED. - On the discharge side of the proportioner, connect the pipe or line which will feed the mixture to a central reservoir or to the mixture use points. If you are using pipe to make these connections, use a 3/4" Garden Hose to NPT adapter.
- Attach the suction tube to the chemical pump and place the bottom end of the tube into the product container.
