Fluid Powered Chemical Dispensing Systems
End Plates
Standard End Plates
7 GPM
Part # 9606
| Description: | Standard 6000 Series (7 GPM) Endplate | |
| Construction | Molded Glass Filled Delrin |

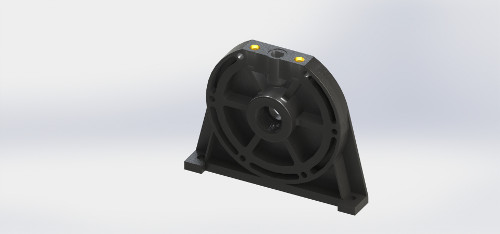

Part # 9616
| Description: | Standard 6000 Series (7GPM) Front Endplate | |
| Construction: | Molded Glass Filled Delrin | |
| Fits Models: | 6005 - 6020 |
12 GPM

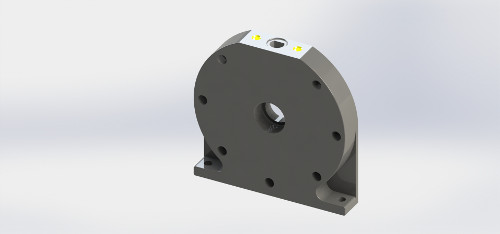

Part # MV9606-PVC
| Description: | Standard Mid Volume (12 GPM) Endplate | |
| Construction: | PVC |

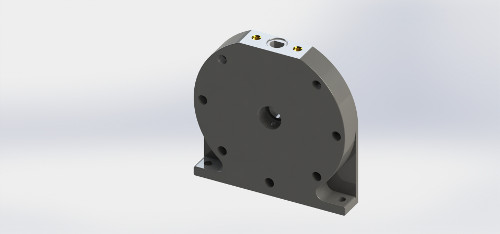

Part # MV9616-PVC
| Description: | Standard Mid Volume (12 GPM) Front Endplate | |
| Construction: | PVC | |
| Fits Models: | MV6003 - MV6012 |
25 GPM

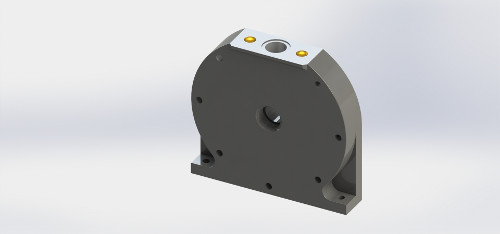

Part # HV9606-PVC
| Description: | Standard High Volume (25 GPM) Endplate | |
| Construction: | PVC |
Part # HV9616-PVC
| Description: | Standard High Volume (25 GPM) Front Endplate | |
| Construction: | PVC | |
| Fits Models: | HV6004 - HV6008 |
Hot Water Specific Endplates
7 GPM

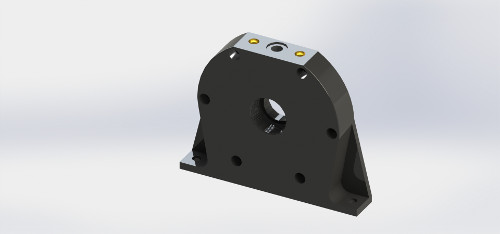

Part # 9606-MAC
| Description: | Hot Water Specific Endplate (7 GPM) | |
| Features | Rated up to 165F |

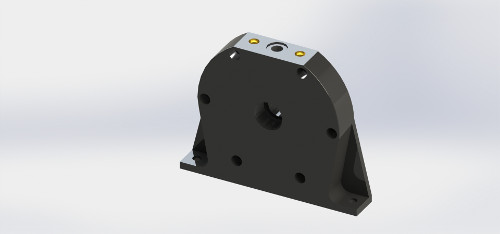

Part # 9616-MAC
| Description: | Hot Water Specific Front Endplate (7 GPM) | |
| Features: | Rated up to 165F | |
| Fits Models: | 6005 - 6020 |
Note - Additional parts needed when upgrading from standard endplate to Hot Water specific DMAC.
Part # 218-4.000 Screws (Qty. 6)
Part # 229-SST Washers (Qty. 6)
12 GPM

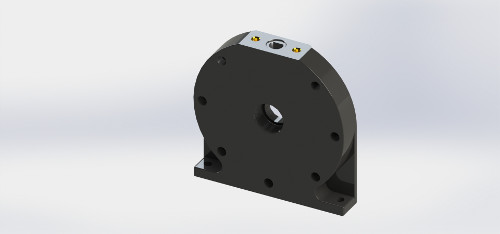

Part # MV9606-MAC
| Description: | Hot Water Specific Endplate (12 GPM) | |
| Features: | Rated up to 165F |
Part # MV9616-MAC
| Description: | Hot Water Specific Front Endplate (12 GPM) | |
| Features: | Rated up to 165F | |
| Fits Models: | MV6003 - MV6012 |
25 GPM

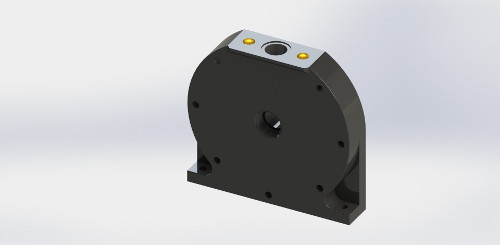

Part # HV9606-MAC
| Description: | Hot Water Specific Endplate (25 GPM) | |
| Features: | Rated up to 165F |
Part # HV9616-MAC
| Description: | Hot Water Specific Front Endplate (25 GPM) | |
| Features: | Rated up to 165F | |
| Fits Models: | HV6004 - HV6008 |
NOTE - Endplate assemblies include the accommodating o-rings for their size.
