Fluid Powered Chemical Dispensing Systems

Applications

    The Hydroblend Proportioner is ideal for:
  • Peracetic Acid (PAA)
  • Hot Water Applications
  • Lactic Acid
  • Sanitizers
  • Chlorine Dioxide
  • Conveyor Lubricants
  • Foaming Agents
  • Floor Scrubber Fill Stations

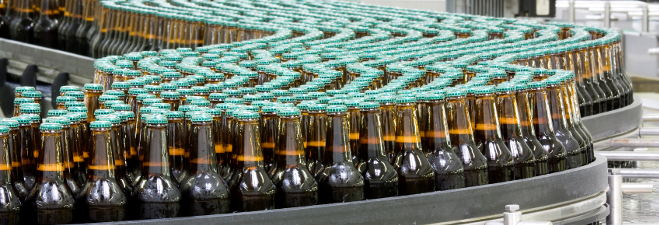

  • Bottling Lines
  • Cleaning & Degreasing

Benefits

  • Reduces chemical waste
  • Improves proportioning accuracy
  • Easy installation
  • Reliable operation
  • Controlled chemical dispensing
  • Lowest Life Cycle Cost (Accuracy + Durability = Outstanding Value)

Downloads


Questions?

We're happy to assist you with your particular requirements.

Contact Us

Sanitizing / Hygiene / Cleaning

From its inception, Hydroblend proportioners have been the industry standard for a huge array of sanitizing, disinfecting and cleaning applications. Sanitizing and disinfecting applications demand extreme accuracy at all discharge and dilution rates. The Hydroblend excels on problematic high dilution, extremely low flow applications.

Because the chemical components are isolated from the "water motor" all Hydroblends can be application specific. We choose materials of construction that offer the greatest resistance to the chemicals being diluted. There are a wide variety of sanitizer and cleaning formulations, so an MSDS should be provided whenever possible to help identify the proper seal package for the chemicals to be proportioned. Our customer service department would be happy to assist you in this process.

As many of these applications require water temperatures exceeding 160F, Hydroblend International can build any of our units to be "Hot Water" specific.


Recommended Hydroblend Pumps / Systems:

High Dilution Cleaners
Model #6005-PVC-E (Max 0.5oz/gallon)
Model #6010-PVC-E (Max 1oz/gallon)
Model #MV6003-PVC-E (Max 0.32oz/gallon)

Conveyor/Chain Lubricants
Model #6040-PVC-V (Max 4oz/gallon)
Model #MV6050-PVC-V (Max 5oz/gallon)

Lactic Acid
Model #6040-HDPE-TTE,DMAC (Max 4oz/gallon)
Model #6080-HDPE-TTE,DMAC (Max 8oz/gallon)
Model #MV6080-HDPE-TTE,DMAC (Max 8oz/gallon)

Peracetic Acid
Model #6005-K-PA,DMAC (Max 0.5oz/gallon)
Model #MV6003-K-PA,DMAC (Max 0.32oz/gallon)

Floor Scrubber Fill Station
Model #6040-PVC-E (Max 4oz/gallon)
Model #MV6050-PVC-E (Max 5oz/gallon)

Chlorine/Bleach
Model #6005-HDPE-V,BLE (Max 0.5oz/gallon)
Model #6010-HDPE-V,BLE (Max 1oz/gallon)
Model #6020-HDPE-V,BLE (Max 2oz/gallon)

Chlorine Dioxide — Dairy Cow Treatments
Model #6160-PVC-V (Teat Dip 1:9)
Model #6470-PVC-V (Teat Dip 1:3, 1:5, 1:9, 1:19)
Model #091-AIRFP6100-DI-PVC-V(Dual Injection 1:1)
Model #092-AIRFP6100-DI-PVC-V (Dual Injection 1:1)
Model #093-AIRFP6100-DI-PVC-V (Dual Injection 1:1)
Model #061-F6061-8917-DI-A-V (Dual Injection 6.1oz/gallon)


* Other units available upon request, and based on your proportioning needs.
