Fluid Powered Chemical Dispensing Systems
Mixing Chambers

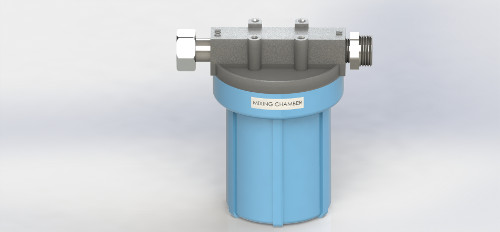

7 GPM
Part # 9571-ASSY
| Description: | Mixing Chamber & Jet Assembly | |
| Connections: | 3/8" FNPT (Garden Hose Inlet & Outlet Adapters Included - 316 SST) | |
| Features: | Max Inlet Pressure 75 PSI Max Water Temperature 125F |
|
| Construction: | Polypropylene Housing & Schedule 80 PVC Jet Assembly |

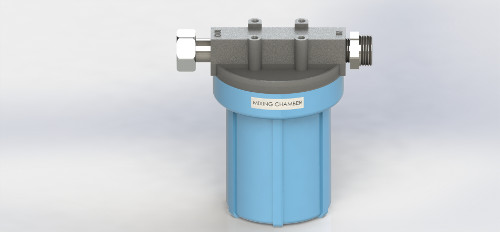

12 GPM
Part # 9572-ASSY
| Description: | Mixing Chamber & Jet Assembly | |
| Connections: | 1/2" FNPT (Garden Hose Inlet & Outlet Adapters Included - 316 SST) | |
| Features: | Max Inlet Pressure 75 PSI
Max Water Temperature 125F |
|
| Construction: | Polypropylene Housing & Schedule 80 PVC Jet Assembly |
25 GPM
Part # HV9572
| Description: | Mixing Chamber & Jet Assembly | |
| Connections: | 3/4" FNPT | |
| Features: | Max Inlet Pressure 75 PSI
Max Water Temperature 125F | |
| Construction: | Polypropylene Housing & Schedule 80 PVC Jet Assembly |

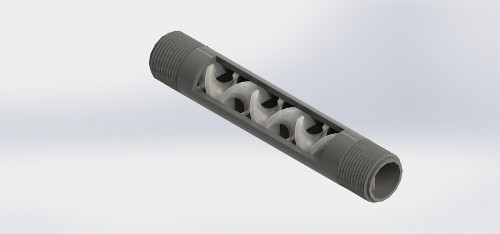

Static Mixer
Part # 9276-2SMT
| Description: | Static Mixer & Tube Assembly | |
| Connections: | 3/4" MNPT - 6" Long | |
| Features: | Max Inlet Pressure 75 PSI Max Water Temperature 125F | |
| Construction: | Schedule 80 PVC Housing & Polypropylene Spinal Mixer | |
| Additional Options: | Will work with all 7 and 12 GPM Hydroblend models |
